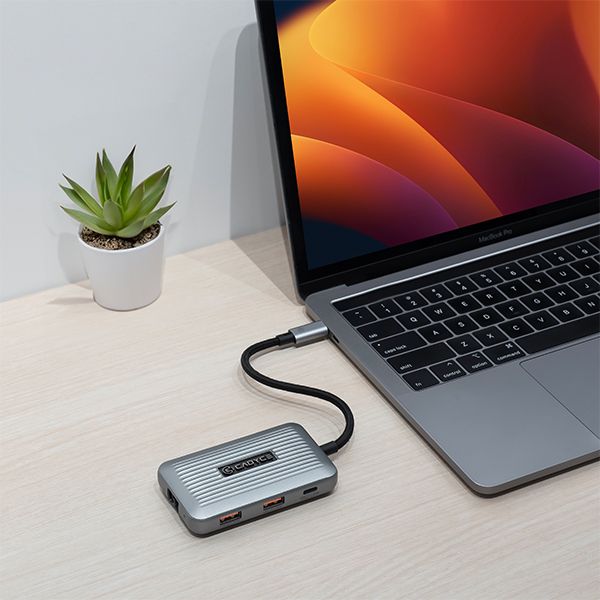

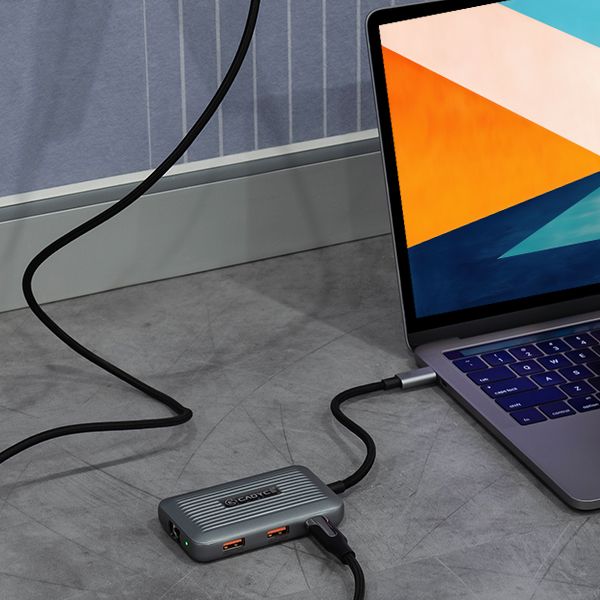

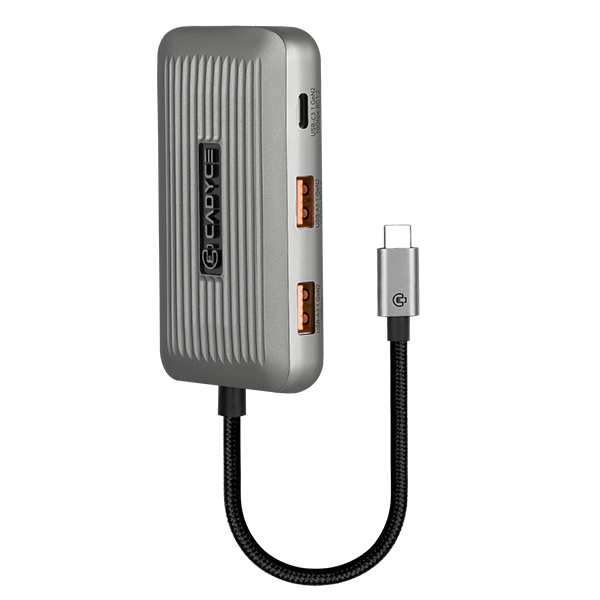

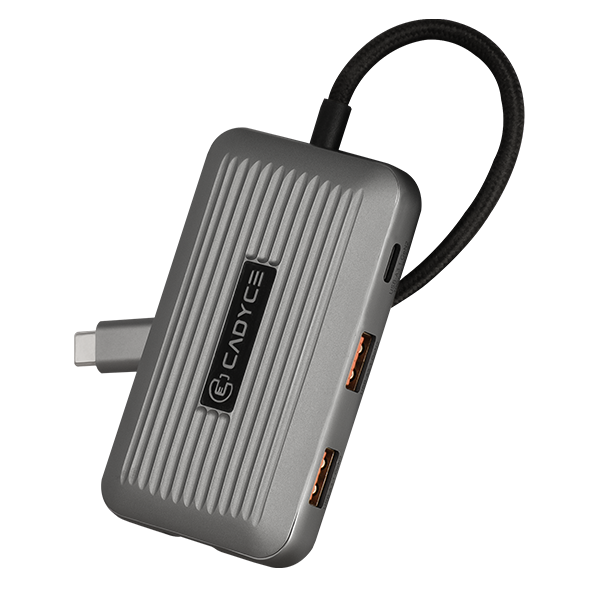

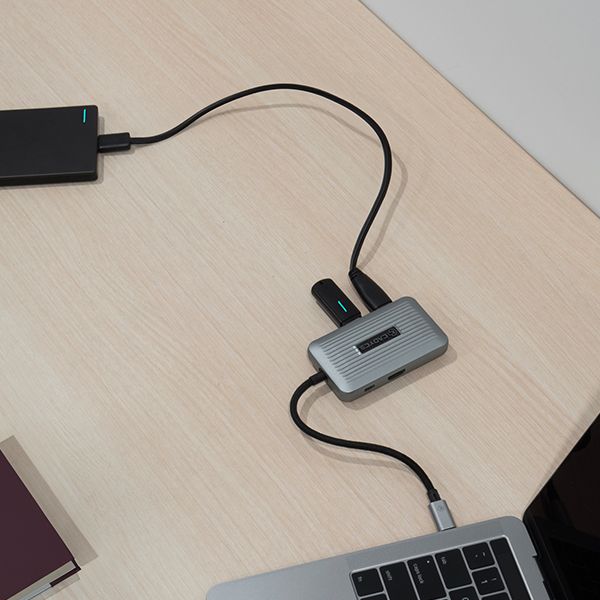

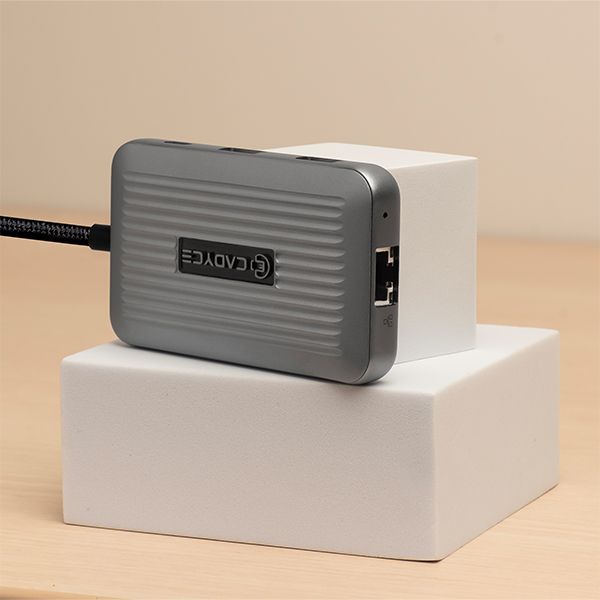

CA-CU3HG PLUS
USB-C® 3.1 GeN2 to USB 3.1 GeN2 Hub, Gigabit Ethernet, HDMI(4K) Dock with 100W PD Charging Port
CADYCE CA-CU3HG, provides extra connectivity ports such as Gigabit Ethernet, 4K HDMI, 10Gbps USB 3.1 GeN2 and 100W USB-C® PD charging port to your USB-C® enabled computer.
- Support HDMI Resolution up to 4K x 2K@60Hz.
- USB-C® 100W(PD) Power Delivery.
- BC1.2 (Battery Charging)
- Supports 10Gbps data transfer via USB 3.1 Gen 2 ports.
- Gigabit Ethernet Port.
- Supports Mirror and Extend Mode.
- Compatible with Windows & macOS.
- Easy, Plug & Play Installation.

SPECIFICATION
| Input | USB-C® Male x 1, USB-C® PD(100W) Female x 1 |
|---|---|
| Output | HDMI Female x 1, USB-A 3.1 GeN2 x 2, USB-C® 3.1 GeN2 Female x 1, Gigabit LAN x 1, |
| Data Transfer / Power Delivery | USB-C® PD Port - 100W USB-C® Port - 10Gbps, BC1.2 Charging USB 3.1 Type A - 10Gbps, BC1.2 Charging Gigabit LAN - 10/100/1000Mbps |
| Video Resolution | HDMI Port - 4K@60Hz |
| Product Dimensions / Cable Length | 92 x 54 x 14 (mm) Cable Length - 150mm |
| Power | Bus Powered |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% ~ 85% RH (no condensation) |
| Storage Temperature | -10°C to 70°C |
| Storage Humidity | 5% ~ 90% RH (no condensation) |
| Certifications | CE, FCC, UK, CA, RoHS |
| EAN / UPC code | 0713440305375 |
