CA-IP100M

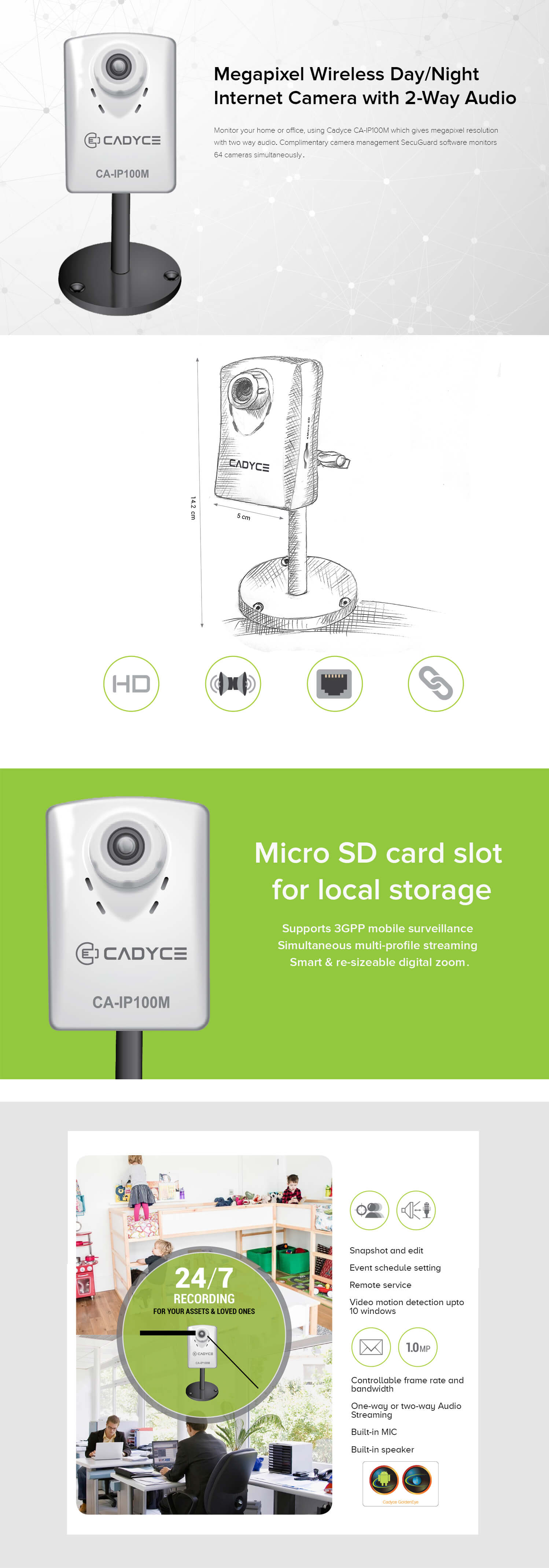

1 Megapixel Internet Camera
₹7,437.50
₹8,750.00
In stock
SKU
CA-133
Monitor your Home or Office, using Cadyce CA-IP100M which gives Mega-Pixel resolution with two way audio. Complimentary camera management SecuGuard software monitors 64 cameras simultaneously.
free shipping
Hassle Free Returns
SPECIFICATION
| Effective Pixels | 1280 x 720pixels |
|---|---|
| Lens | 4.3mm |
| Video Encoder | H.264, MJPEG video compression |
| Video Profile | 8 profiles simultaneously |
| Frame Rate | Up to 30fps (NTSC)/ 25fps (PAL) @ 1280×720 |
| Region of Interest | 2 Region of Interests (max. region size is 640×352) |
| Image Setting | AE, AWB Noise reduction Color, brightness, sharpness, contrast Mirror/Flip 8 Privacy Masks Text, time and date overlay |
| Streaming | Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Supports 3GPP mobile surveillance (MPEG4) Controllable frame rate and bandwidth Constant and variable bit rate (H.264) ROI |
| Audio Encoder | RTSP- G.711 64kbps, G.726 32kbps 3GPP= AMR |
| Audio Streaming | One-way or two-way |
| Microphone | Built-in microphone |
| Audio Output | Adjustable audio output gain |
| Supported Protocols | IPv4,TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, TCP, IGMP, PPPoE, 3GPP, Samba, ICMP |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
| Users | 20 simultaneous unicast users |
| Ethernet | 10/100M auto negotiation. |
| Application | Open API for software integration |
| Programming Interface | ONVIF for SDK integration |
| Motion Detection | 10-zone video motion detection with included or excluded options |
| Alarm Events | • File upload via FTP • File upload via SM TP email • File upload via Samba t o NAS • No tification via email, HTTP, and TCP • Audio alerting output • mSD card local storage |
| Video Buffer General | Pre- and post – alarm buffering |
| Power Supply | 12V DC external power adapter |
| Connectors | RJ-45 10BaseT/100BaseTX DC po wer jack MIC in Audio out Factory default reset mSD card |
| Indication LED | Green and orange LEDs |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 80% (non-condensing) |
| Browser | IE 6.0 or later, Firefox 2.0 or later, Safari, Google Chrome |
| Cell Phone | With 3GPP player |
| Video Player | VLC, Quick Time, Real Player, Core Player |
| Search & Installation | IP Wizard II |
| Bundled NVR Program | 64ch. SecuGuard™ . 64ch. multi-channel supports Tri-decoder . 16ch. video playback (simultaneously) . Smart & scrollable digital zoom. Snapshot and edit . Motion, DI, Scheduler recording . Fast rewind and forward (MPEG4, H.264, MJPEG rewind) . 32×2 4 motion detection grids . Smart search (by time, by motion ) . E-MAP . Event schedule setting . Remote service . Camera tampering |
| Compatibility | Windows® XP, Vista, Win 7/8/10. |
| EAN/UPC Code | 0700587952739 |
