CA-NVR16

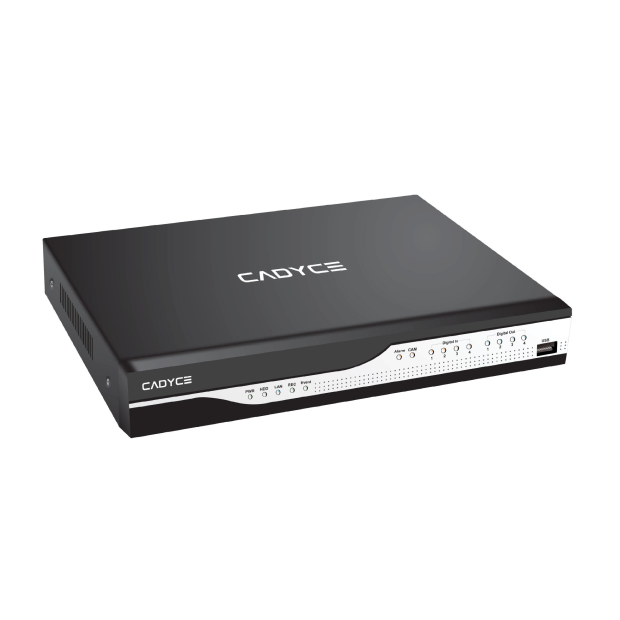

16 Channel NVR
₹58,500.00
Out of stock
SKU
CA-NVR16
Cadyce NVRs allows you to view, record and control IP Cameras connected in your network with the help of one centralised interface. These NVRs can also be accessed remotely over the Internet.
free shipping
Hassle Free Returns
SPECIFICATION
| Support Cameras | Up to 16 IP Cameras Max total bandwidth 80Mbps |
|---|---|
| Audio Codec | G.726 / G. 711 |
| Video Codec | H.264 |
| Resolutions | QVGA / VGA / SXGA / FULL HD / 3M /5M |
| Audio | Volume adjustable / Mute Two way audio |
| Live Preview | Support 1 / 4 division Full-screen Snapshot Selectable display cameras |
| Digital Zoom /ePTZ | Google earth like digital zoom |
| PTZ | Support PTZ cameras PTZ / Preset / Tour / Auto pan / Iris / Focus /Speed Add / Remove /Goto preset |
| Record | Schedule recording each camera Round the clock / motion record modes / DI detection / Event trigger Pre-alarm / Post-alarm configuration Auto recycle record files by HDD spaces |
| Record Device | 2 x SATA Internal HDD 1 x eSATA Samba path support |
| Playback | 1 /4 Division Full-screen Graphical interface Play / Reverse / Pause / Seek / Pre- I frame / Next Frame Speeds |
| Multi-Language | Multi-language selectable English / Traditional Chinese / German / Greece / Tai |
| Event Detection | Motion / DI / Disconnect / HDD / Schedule trigger Schedule-able Event Detection |
| Alarm | Buzzer / DO / Display on Screen / Record / Snapshot / E-Mail / TCP / HTTP / FTP |
| Notification | SMTP / HTTP / FTP / TCP Address Book management |
| User authentications | User management Function permissions |
| Camera setting | DVR like (auto setting) Auto Search Profile selectable |
| Schedule setting | Graphical interface Weekly schedule |
| Network | Fix IP / DHCP / PPPOE / DIPS Report / UPNP transversal |
| System time | Manual setting NTP support DST support |
| Motion detection | Detection windows setting (Max 10 windows) Sensitivity adjust |
| Snapshot | Preview snapshot in HDD or Remove-able device Search Event Snapshot Backup snapshot to remove-able device |
| Disk Management | Partition management Format partition Samba management |
| Maintenance | Resolution selectable, 1024×768 / 1280×1024 / 1366×768 / 1440×900 / 1920×1080 Display style select-able, Normal / Simple / Professional / Advance Screen adjustment, Brightness / Contrast / Saturation / Hue Reset default Backup / Restore setting Firmware upgrade System Restart |
| Remote | Fully function remote live preview Fully function remote playback Support low bit-rate connection with live preview and playback Selectable camera connection |
| CMS support | Remote live preview / playback by NVR or Group NVR / Camera Group management PTZ |
| SoC | ARM Cortex A9 |
| LAN Port | 1 x Gigibit RJ-45 Ethernet port |
| Video Output | VGA D-sub + HDMI |
| Audio Input | MIC x 1 (phone jack 3.5mm) |
| Audio Output | Phone Jack 3.5mm x 1 |
| HDD | Supports SATA HDD Up to 3TB x 2 |
| E-SATA | 1 E-SATA |
| Backup | SD card x 1 |
| LED Indicator | System Ready, HDD R/W, LAN x 1 , Record Schedule x 1 , Event Schedule x 1, Alarm x 1 , Camera status x 1, DI x 4 , DO x 4 |
| USB | For Mouse |
| Sensor In / Alarm Out | 4 Digital in / 4 Digital out |
| Button | Factory Default Reset |
| H/W WDT | H/W Watch Dog |
| RTC | RTC |
| Buzzer | 1 Buzzer |
| Power | External Adaptor, AC100-240V/in, DC12V(4A) |
| Temperature | 0~400C |
| Humidity | 0% ~ 85% R.H. |
| Housing | 2 HDD Version |
| Dimensions | 330 x 57 x 252 mm |
| Weight | 1455 g |
| Certification | CE, FCC |
| EAN/UPC Code | 0700587952593 |
| Brand | Cadyce |
