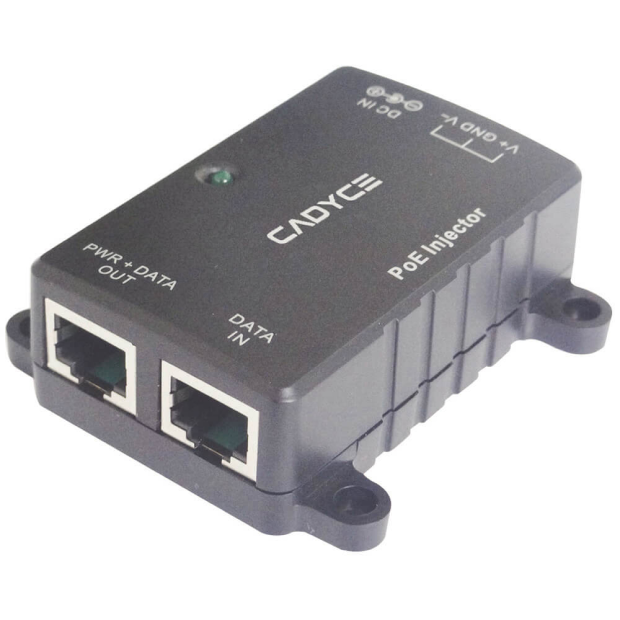

CA-PE100I(30W)
PoE Injector
₹3,600.00
Out of stock
SKU
CA-PE100I(30W)

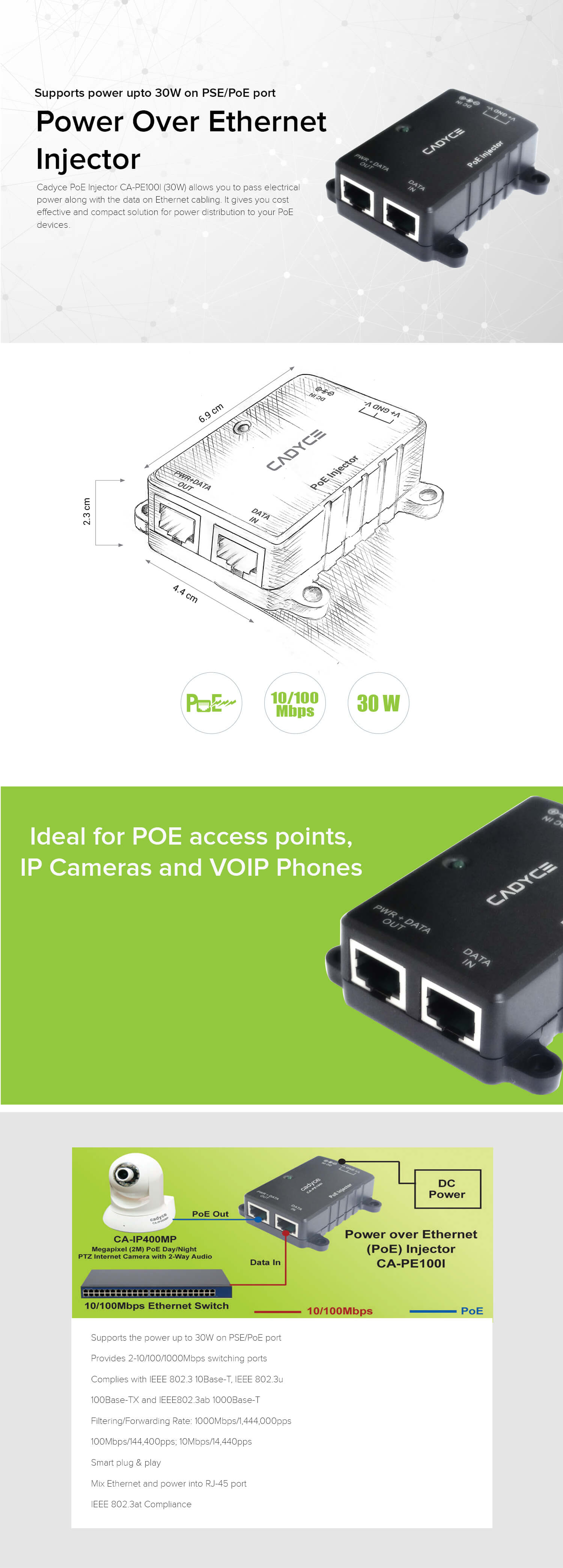

Cadyce PoE Injector CA-PE100I (30W) allows you to pass electrical power along with the data on Ether-net cabling. It gives you cost effective and compact solution for power distribution to your PoE devices.
• 1 Port PSE/ PoE function, 48V output
• Supporting the power up to 30W on PSE/PoE port
• Providing 2-10/100Mbps switching ports
• Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
• Filtering/Forwarding Rate: 100Mbps/144,400pps; 10Mbps/14,440pps
• Mix Ethernet and power into RJ-45 port
• IEEE802.3at Compliance
• Smart plug & play
free shipping
Hassle Free Returns
SPECIFICATION
| Standards | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3at PoE+ |
|---|---|
| Features | Number of Ports = 1 x RJ45 connector= Data input port 1 x RJ45 connector= Data + power output port |
| Filtering/Forwarding Rates | 100Mbps port – 144,400pps 10Mbps port – 14,440pps |
| Transmission Media | 10BaseT Cat. 3, 4, 5, 6 UTP/STP 100BaseTX Cat. 5, 6 UTP/STP |
| LED Indicators | Power |
| Power Input | DC 48V |
| Power Output | 48V Per Port Output – 30 W Max on POE Port |
| Power Consumption | 2 Watts |
| Dimensions | 80 × 68 × 24 mm (L x W x H) |
| Weight | 138g |
| Operating Temperature | 0° to 50° C |
| Storage Temperature | -20° to 90° C |
| Humidity | 10 to 90% RH (non-condensing) |
| Certifications | FCC Class A, CE |
| EAN/UPC code | 7.00588E+11 |
| Brand | Cadyce |
