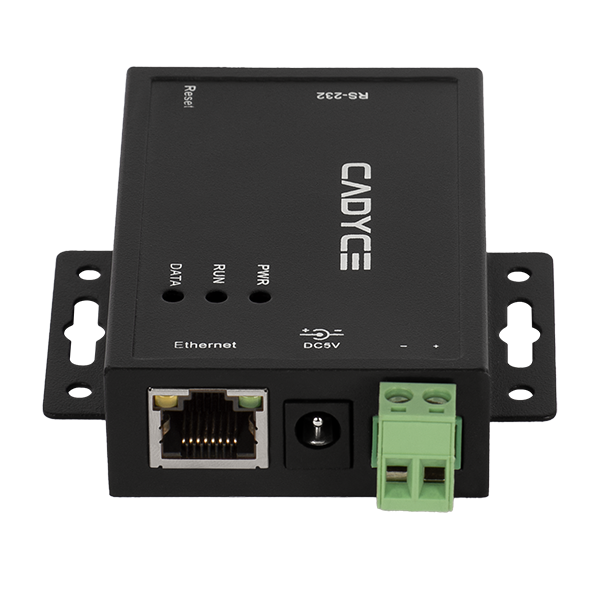

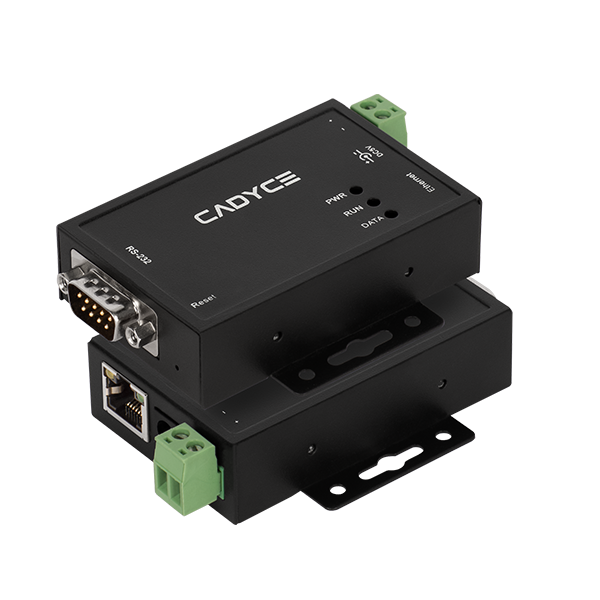

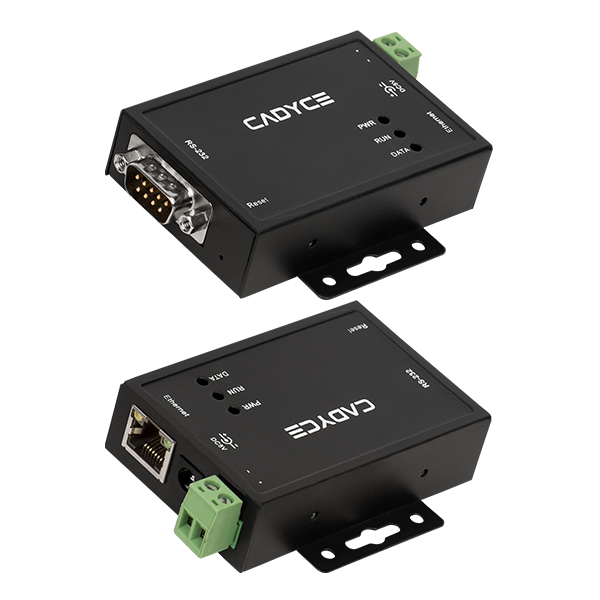

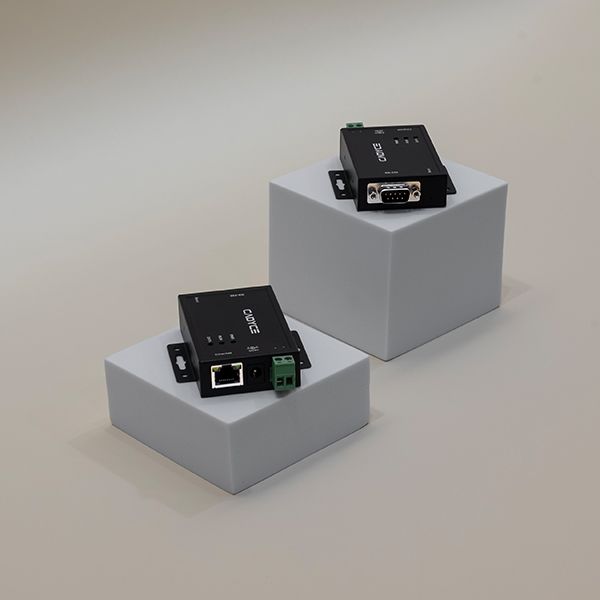

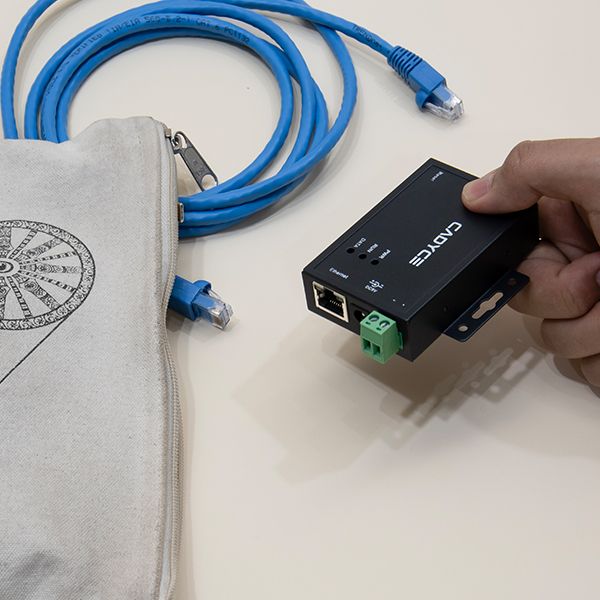

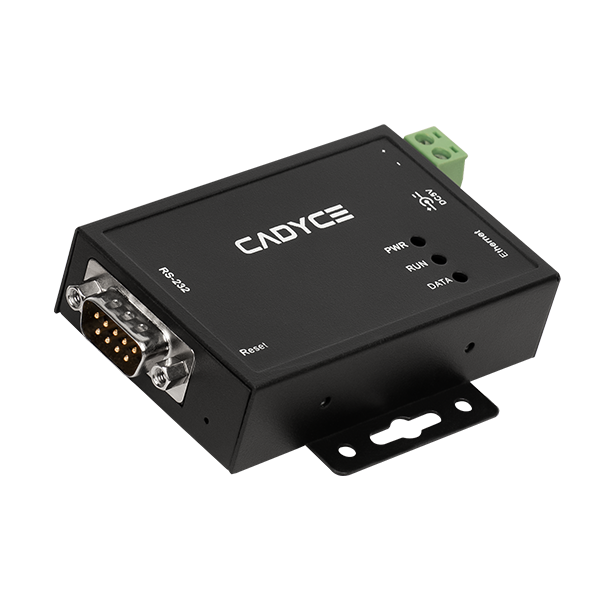

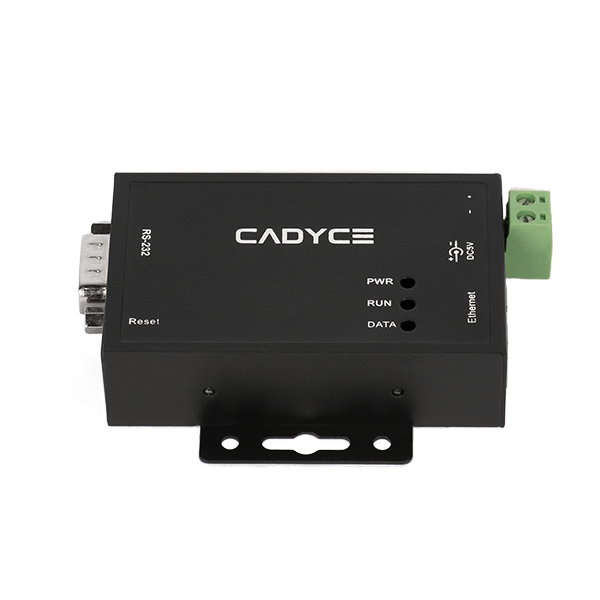

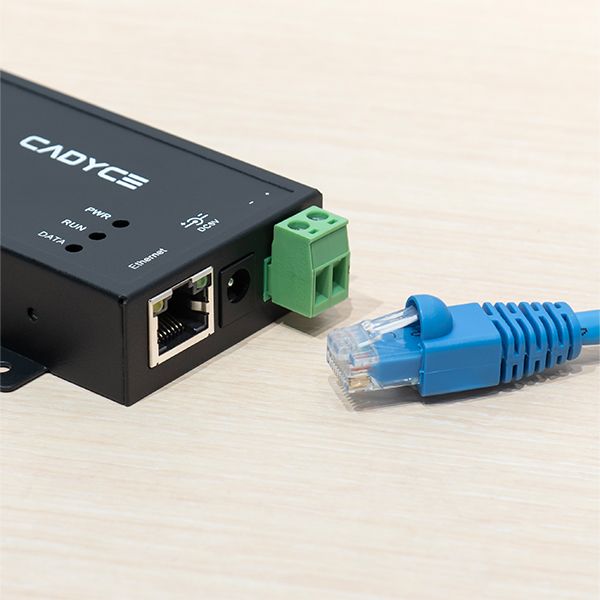

CA-RS2RJ
RS-232 Serial to 10/100Mbps Ethernet Converter
₹12,999.00
In stock
SKU
CA-RS2RJ
Unlock the full potential of CADYCE CA-RS2RJ which seamlessly bridges RS-232 Serial interface to 10/100Mbps Ethernet, enhancing connectivity with reliability and performance.
- Bidirectional data transmission over Ethernet and RS-232
- Integrated 1 RS-232 communication interface, supporting 300bps-921600bps communication rate
- Integrated 1 10M/100M Ethernet interface
- Power supply interface: DC-JACK, 5.08-2P Phoenix terminal
- Parity bit: None,Odd,Even
- Data bit 5, 6,7,8
- Stop bit 1, 1.5, 2
- Flow control RTS/CTS, XON/XOFF
- Working voltage: DC 5V±5%
- Working current: 80mA@5V
- Operating temperature: -40~85°C
- Storage temperature: -40~85°C
- Operating humidity: 5~95% (no condensation)
- Storage humidity: 5~95% (no condensation)
- Electrostatic protection: air 4kV. contact 4kV
- Surge protection: Serial port 600W
free shipping
Hassle Free Returns
SPECIFICATION
| Input/Output | RS232 9-Pin Serial Port |
|---|---|
| Output | 10/100Mbps Ethernet Port |
| Data Transfer / Communication Rate | 300-921600bps |
| Working Voltage | DC 5V |
| Working Current | Less than 80mA@5V |
| Operating Temperature | -40°C to 45°C |
| Operating Humidity | 5% ~ 95% RH (no condensation) |
| Storage Temperature | -10°C to 85°C |
| Storage Humidity | 5% ~ 95% RH (no condensation) |
| Certifications | CE, FCC, UK, CA, RoHS |
| EAN / UPC code | 0658215618956 |
